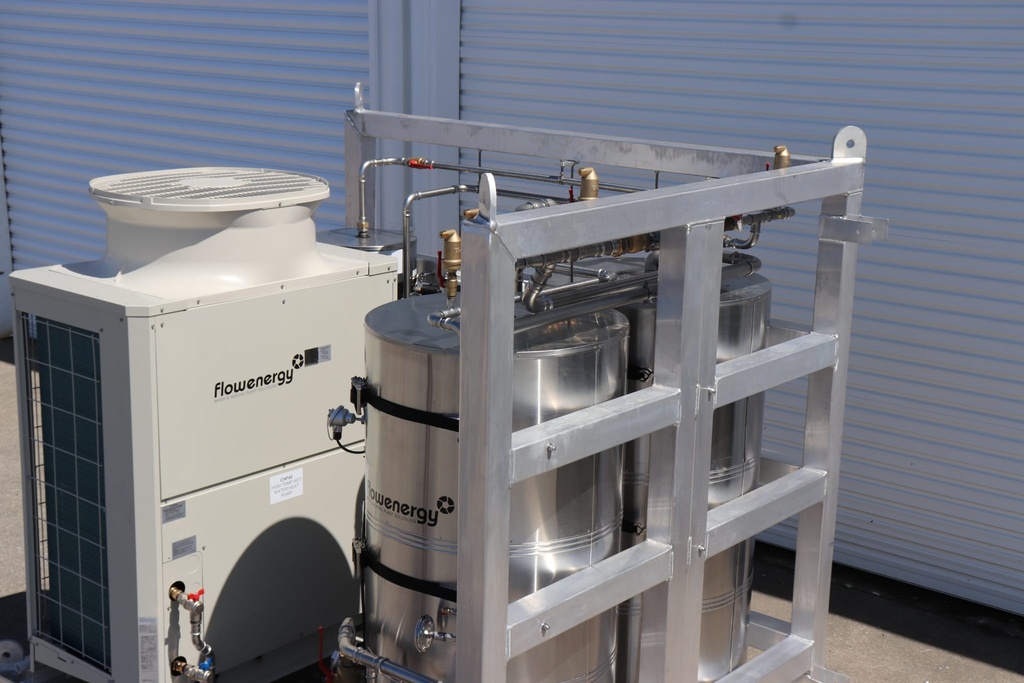

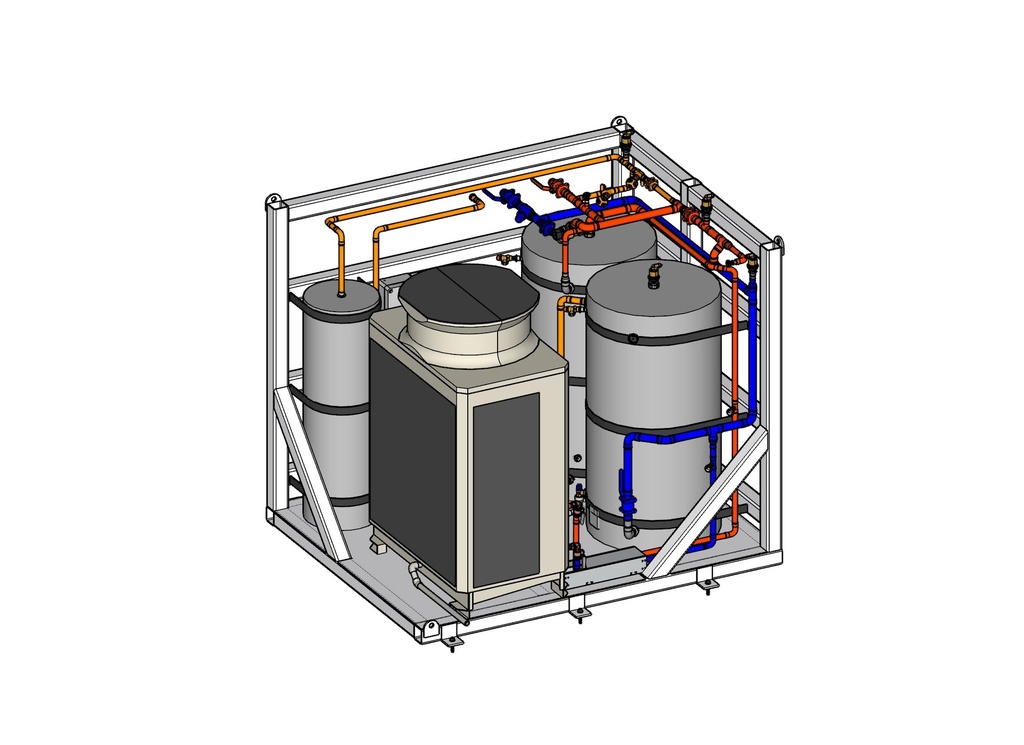

HeatPak HWS1650 Hot water heating system

0% Off

HeatPak HWS1650 Hot water heating system


HeatPak HWS1650 Hot water heating system. Using natural CO₂ refrigerant high-temperature heat pumps, this plug-and-play hot water heating system provides *1648 Litres of decarbonised 65°c hot water for commercial installations.


    This combination does not exist.

    Product Code:

    Product Features:
    • Typically used as an alternative for gas hot water for motels, hotels, Resthomes, commercial kitchens and other venues Potable domestic hot water with a circulating ring main loop.
    • This model can produce a First hour hot watercapcity of1650 Litres of hot water
    • Continuous hot water production of +600L/hr @7°ambient air temperature and 65°C outlet temperature.
      heat pump *SCOP of 3.5 super high efficiency 350% - low running costs.
    • Twin heat pumps provide peace of mind and continuity of hot water.
    • Designed and built with "Plug & Play" in mind for Super fast and simple site installation.
    • It is fully wired with an onboard electrical switchboard requiring only a single electrical connection.
    • Backup electrical elements for ring main heating and emergencies.
    • Easy site water piping to 3 x high flow threaded connection points: 40mm Cold water, 40mm Hot water, 25mm hot water Return.
    • 1 x 50mm drain connection - no additional drainage requirements.
    • High flow 40mm thread connections
    • Thermostatic hot water mixing valve for precise ring main temperature control and ring main thermal disinfection settings available for legionella control.
    • Smart circulating pumps for superior energy efficiency.
    • Fully insulated pipework for low heat loss.
    • 2205 Duplex stainless steel cylinders for all potable water conditions and mains pressure.
    • high-quality components and pipework.
    • Heavy duty, engineered, fully welded aluminium frame with cylinder support and restraint, Lifting lugs makes site installation quick and can be relocated if the site needs change.
    • Comes standard with a hold-down bolt system, no additional brackets are needed.
    • Fully Pre-commissioned for fast site startup.
    • Video operation and installation instructions.
    • Note (*First hour capcity)

    On Application
    Share :

    Using natural CO₂ as the refrigerant and achieving a high coefficient of performance (COP), CO₂ heat pumps offer both ecological and financial benefits.
